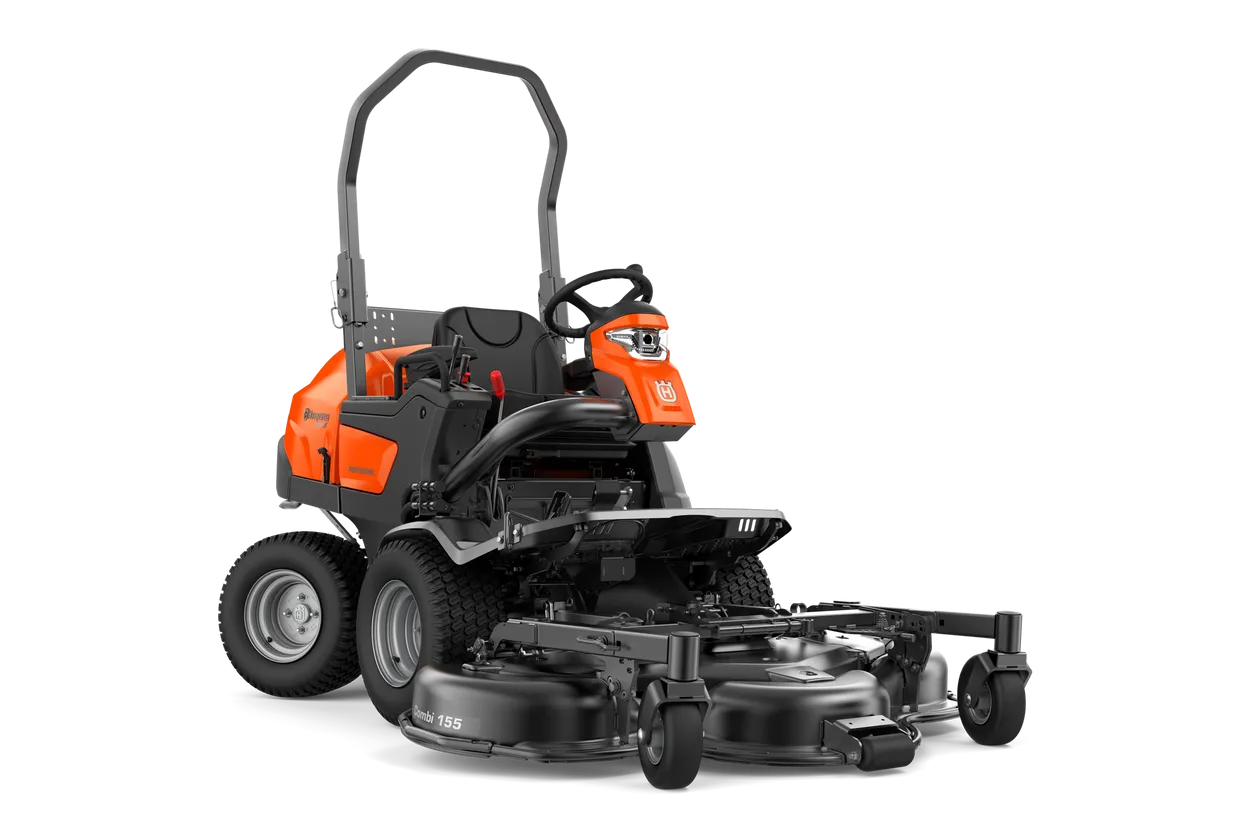

Husqvarna P525DX Front Mower
Husqvarna P525DX Front Mower
SKU:P525DX
Couldn't load pickup availability
Shipping info
Shipping info
Shipping charges for your order will be calculated and displayed at checkout. However due to the nature and size of some of our products, surcharges may apply for some items based on the size, weight or delivery location. If your delivery address is rural, please select the rural delivery option at checkout. Please be aware that the store may contact you to discuss any rural surcharges.Â
At Go-to Gardening and Go-to Servicing, we service everything we sell.
Kubota Diesel. Base Unit Only (order Deck separately)
High-capacity diesel-powered front mower offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas. Kubota Diesel. The commercial graded transmission gives uncompromised traction and slope stability. The machine's compact size and high transport speed makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Long-life components for solid durability and less downtime. Attachments such as utility bucket and broom give increased productivity all-year round.
 Base Unit Only - Order Deck below
Combi deck 155cm. Combi deck 132cm also available via special order only.
- CTP132 967 97 83-01 Combi Deck 132cm Suits P525D / P525DX (Indent Only)Â
- CTP155 967 97 84-01 Combi Deck 155cm Suits P525D / P525DXÂ
Specifications
| Engine |
P 525DX 2021-
Art no: 967 98 53‑01
|
| Power/fuel type | Diesel |
|---|---|
|
Net power at preset rpm Energy1Â
|
17.8 kW |
| Net power at preset rpm | 3,000 rpm |
| Motor/engine manufacturer | Kubota |
| Engine name | D1105 |
| Cylinder displacement | 1,123 cmÂł |
| Cylinders | 3 |
| Engine cooling | Liquid |
| Engine lubrication type | Pressure with Oilfilter |
| Oil filter | Yes |
| Emission | |
|
Exhaust emissions (COâ‚‚ EU V)2Â
|
1,018 g/kWh |
| Battery | |
| Battery capacity | 62 Ah |
| Battery type | Lead-Acid |
| Battery pack weight | 14 kg |
| Battery manufacturer | Exide |
| Cutting deck | |
| Uncut circle | 58 cm |
| Cutting width, min | 132 cm |
| Cutting width, max | 155 cm |
| Cutting height min | 30 mm |
| Cutting height max | 112 mm |
| Blade engagement | Electric clutch |
| Dimensions | |
| Tyre dimensions, front | 20x10-10 |
| Tyre dimensions, rear | 20x10-10 |
| Wheelbase | 106 cm |
| Ground clearance | 140 mm |
| Base machine, length | 207.8 cm |
| Base machine, width | 115.3 cm |
| Base machine, height | 133 cm |
|
Gross weight towed3Â
|
350 kg |
| Weight (excl. cutting equipment) | 684 kg |
| Drive system | |
| PTO (Power Take Off) | Shaft drive |
| Transmission type | Hydrostatic |
| Transmission manufacturer, rear | Kanzaki |
| Drive method | Dual pedal-operation |
| Speed forward max | 19 km/h |
| Speed reverse max | 9.3 mph |
| Speed reverse max | 15 km/h |
| Transmission manufacturer, front | Kanzaki |
| Transmission model, front | KTM 23LC |
| Transmission model, rear | KTM 23SC |
| Equipment | |
| Seat suspension | Yes |
| Seat type | Full suspension, arm rests |
| Hour meter type | Digital |
| Seat material | Vinyl |
| Seat back height | High |
| Foldable seat | Yes |
| Steering wheel type | Professional |
| Parking brake, type | Disc |
| Vibration | |
| Vibration level steering wheel | 1.7 m/s² |
| Vibration level seat | 0.7 m/s² |
| Sound and noise | |
| Sound pressure level at operators ear | 91 dB(A) |
| Sound power level, guaranteed (LWA) | 105 dB(A) |
| Sound power level, measured | 104 dB(A) |
